HUMIDITY TO TRACH SETUPS

Heated Humidity

part diagram for heated humidity

ITALIC ITEMS INDICATE PART NUMBERS FOR REORDERING SUPPLIES PLEASE ORDER NEW SUPPLIES IN ADVANCE

Heated Humidity - Cleaning & Replacement

  • MED HCS 4507 or PRC TDO7-25 Oxygen Tubing - change every month • DRV 18450 Air Compression Filter - change every month
  • RCI 1085 Trach Mash - change every month
  • RCI 1742 - Drainage Bag - change every month
  • FPH MR290V - Water Chamber - change every month
  • FPH 900MR810 - Evatherm Tube - disinfect weekly in 1 part vinegar/3 parts water for 30 minutes and rinse.

NOTE: because they are heated, when cleaning the breathing circuits please wait until they are completely dry to re-attach and use.

Heated Humidity - Air Compressor

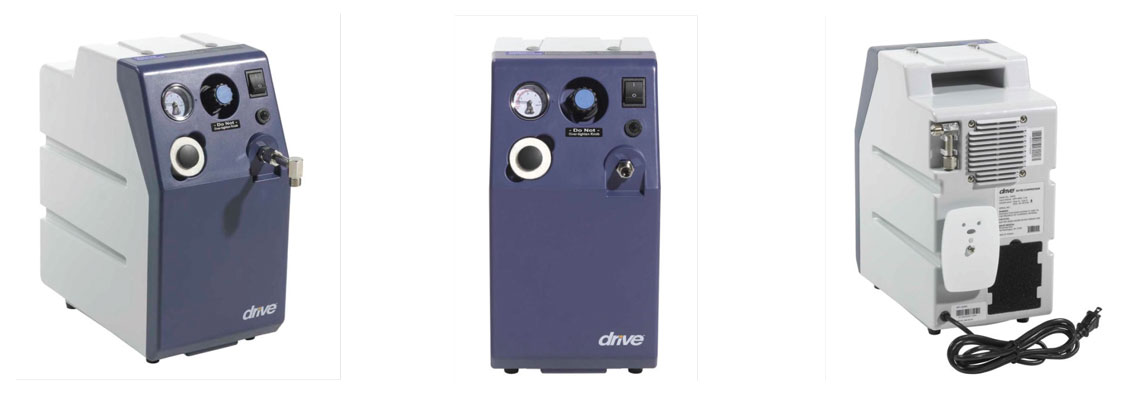

Three heated humidty air compressors

Air compressors need space around them to allow for air flow.

Keep away from walls and curtains.

Always turn the air compressor off when not in use.

Cool Humidity

part diagram for cool humidity

BOLD TEMS INDICATE PART NUMBERS FOR REORDERING SUPPLIES PLEASE ORDER NEW SUPPLIES IN ADVANCE

Cool Humidity - Cleaning

  • Discard corrugated blue tubing every 3-7 days
  • Wash humidity bottle, tracheostomy mask and drain bags every 3-5 days • Use sterile water to fill to the top line of your clean humidity bottle

Cool Humidity - Replacement

  • DRV 18450 - Intake Filter - change monthly
  • RCI 1075 - Adult Tracheostomy Mask - change monthly
  • RCI 1742 - Aerosol Drainage System with Wye Adapter - change monthly
  • BAX 002002 Humidity Bottle - change monthly
  • RCI 1580 - Blue Corrugated Tubing - change monthly

Suction

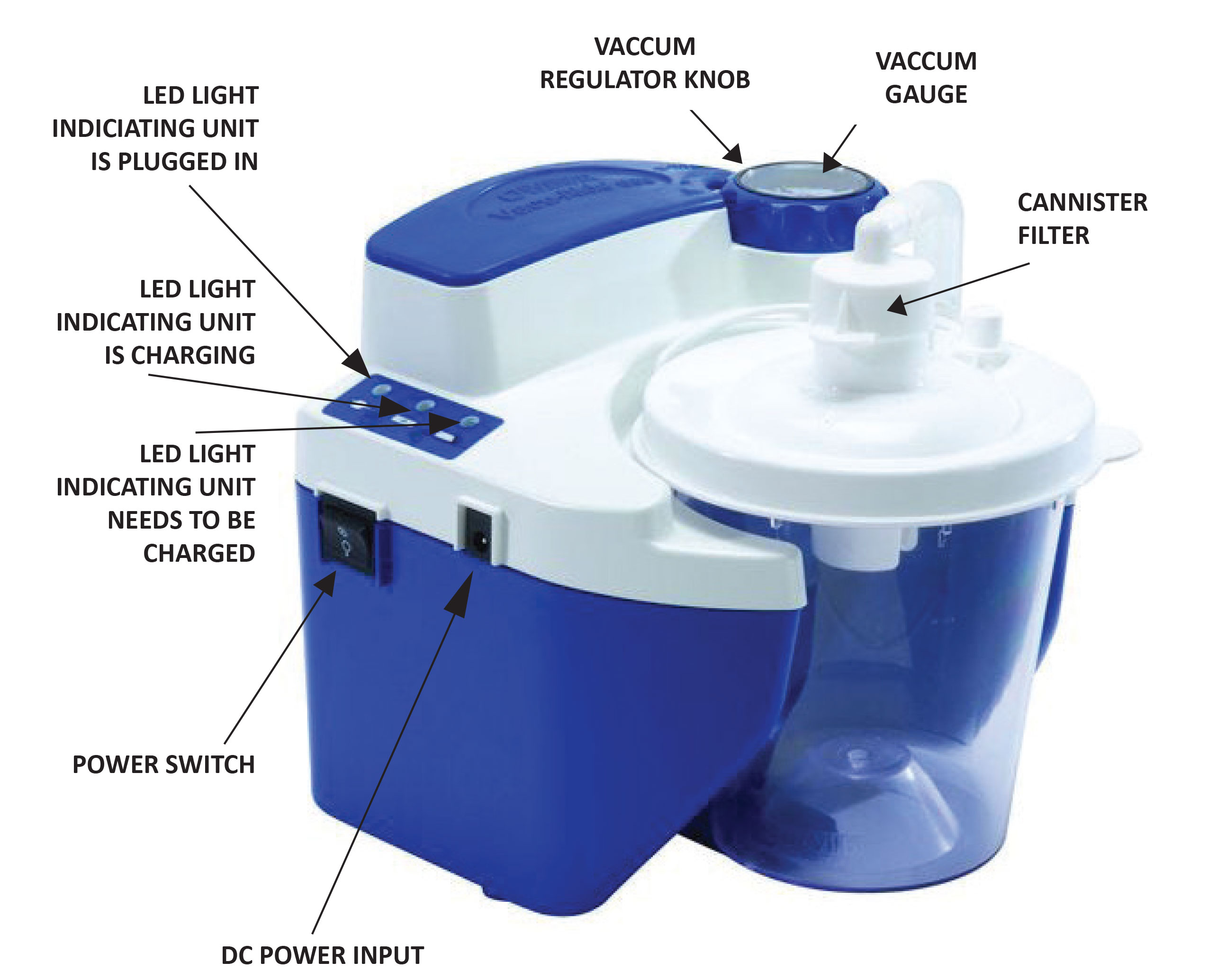

suction diagram

For additional information on suction, please see our general information booklet.
